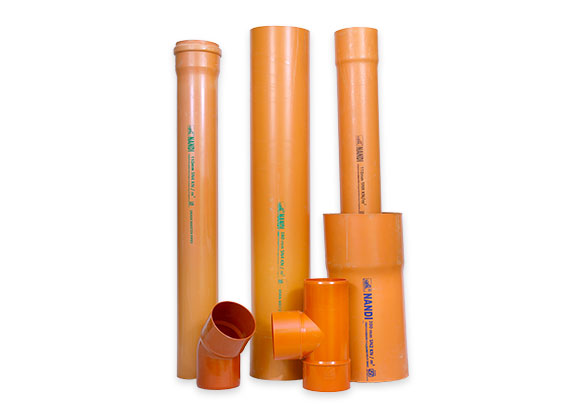

UPVC UGDS Pipes (drainage and sewerage)
We use high quality UPVC resin to ensure safe and sturdy Non-pressure UPVC pipes for usage in underground non-pressure drainage systems, biogas and oil distribution lines, subsoil drainage system, industrial and chemical effluent disposal system, etc.. Read More...
- Non-corrosive
- Resistant to acids and other chemicals
- Push fit joint
- Low Maintenance
- Durable
- UV Stabilized
- Easy to Install
Nandi UDGS Pipes Size Chart
| Nominal Diameter | Wall Thickness (mm) | |||||
|---|---|---|---|---|---|---|
| SN 2 SDR 51 | SN 4 SDR 41 | SN 8 SSDR 34 | ||||
| Size | Min | Max | Min | Max | Min | Max |
| 110 | 3.20 | 3.70 | ||||
| 125 | 3.20 | 3.70 | 3.70 | 4.40 | ||
| 160 | 3.20 | 3.70 | 4.00 | 4.60 | 4.70 | 5.40 |
| 200 | 3.90 | 4.50 | 4.90 | 5.60 | 5.90 | 6.70 |
| 250 | 4.90 | 5.60 | 6.20 | 7.00 | 7.30 | 8.30 |
| 315 | 6.20 | 7.00 | 7.70 | 8.70 | 9.20 | 10.40 |
| 400 | 7.90 | 8.90 | 9.80 | 11.00 | 11.70 | 13.10 |
| 500 | 9.80 | 11.00 | 12.30 | 13.70 | 14.60 | 16.30 |
| 630 | 12.30 | 13.50 | 15.40 | 17.10 | 18.40 | 20.30 |
